DESCRIPTION

XGS-PON VIRTUAL OLT

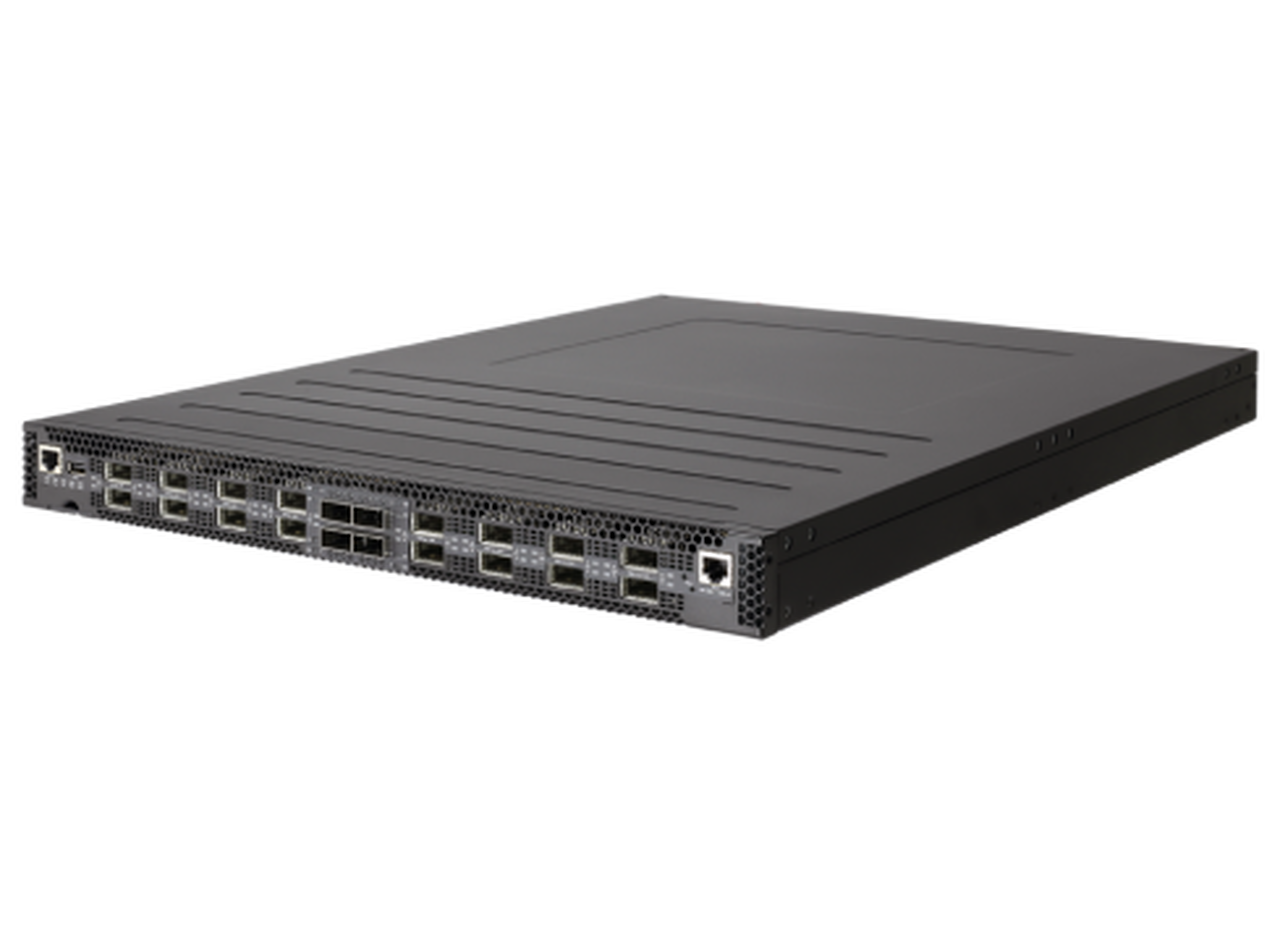

The ASXvOLT16 is a 16-10G-port XGS-PON virtual Optical Line Terminal (vOLT) with 4 x 100G/40G QSFP28 fixed ports. The 10G ports, 100G uplink ports, and console/management USB ports are all on the front panel. All 10G ports operate at wire-speed by default and support standard XGS-PON transceivers. The QSFP28 ports support 100G and 40G operation modes, as well as being configurable as 4 x 25GbE or 4 x10 GbE modes using DAC breakout cables. This vOLT supports redundant hot-swappable PSUs and fans, and is available with a front-to-back or back-to-front airflow direction.

The open OLTs include the open source software components ONIE, Open Network Linux, Open Optical Monitoring (OOM) API, the Redfish hardware management API, and the OpenOLT Adapter (vOLTHA driver) for operation in SDN Enabled Broadband Access (SEBA) or R-CORD open infrastructures defined through the Open Network Foundation (ONF).

Key Features and Benefits

Cost-effective, bare-metal switch infrastructure for data center fabric.

• 4 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables 2 x 50 GbE, 4 x 25 GbE, or 4 x 10 GbE.
• Layer 2 or Layer 3 forwarding at 300 Gbps (full duplex).
• Supports hot/cold aisles with front-to-back airflow SKU.
• All ports on front; PSUs and fans accessible from rear.
• Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
• 5+1 redundant, hot-swappable fan modules.
• Handles the abstraction between the protocol and the native hardware RPC.
• Bare-Metal hardware switch pre-loaded with diagnostics software and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
