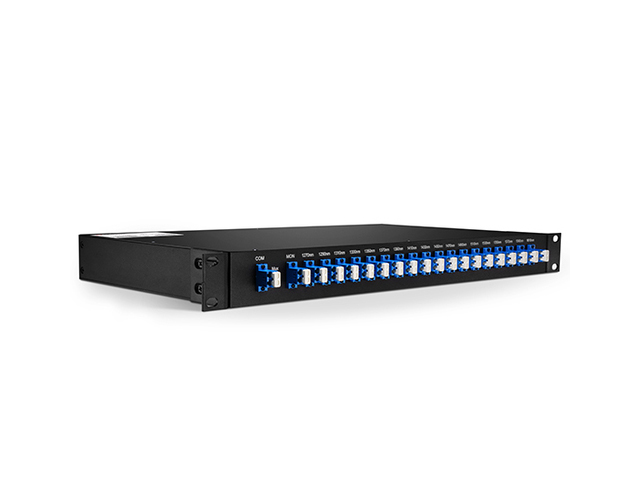

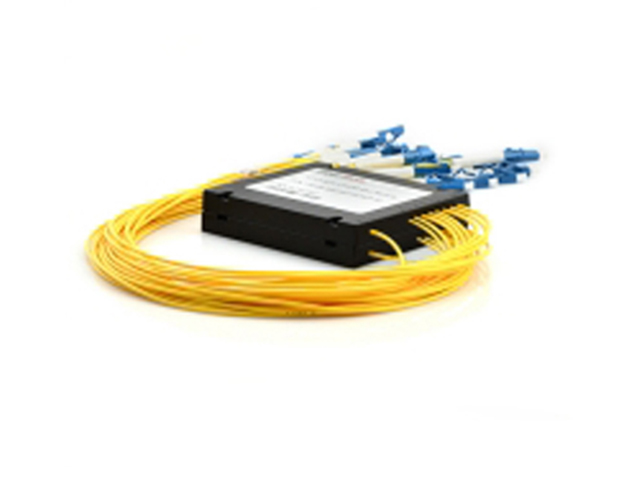

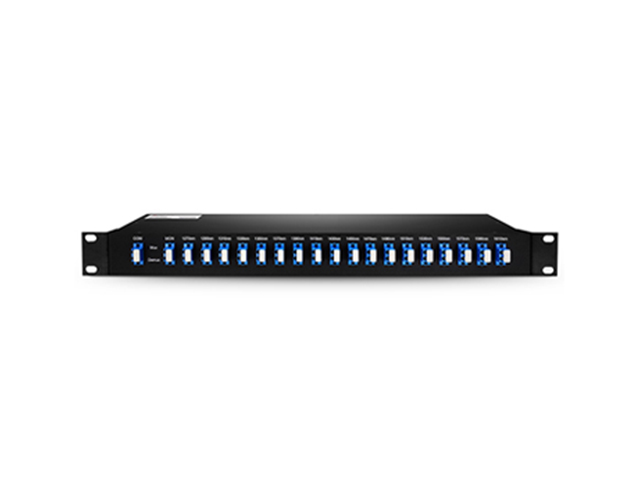

CloudOpotics CWDM and DWDM multiplexing products come with an extensive range of options that ensure you receive the perfect multiplexing solution, no matter what your needs. Our CWDM Mux Demux Range is available in both simplex and duplex and with2 4, 8, 16, or 18 channels. Our DWDM Mux Demux is available in both simplex and duplex and with channels ranging from 4 to 96 Channels. And we provide all LGX, 1U Rack Amount and ABS pigtail types.
How To BuyContact us
sales@cloudoptics.net
| Wavelength | Channel Spacing | Channel Passband | Passband Ripple | Insertion Loss | Insertion Loss @ 1% Mon | Adjacent channel Isolation | Non-adjacent channel Isolation | Return Loss | Directivity | Polarization Dependent Loss | Polarization Mode Dispersion |
| Duplex | |||||||||||
| 4 Channels 1270-1330nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
| 8 Channels 1470-1610nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
| 9 Channels 1270-1590nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
| Wavelength | Channel Spacing | Channel Passband | Passband Ripple | Insertion Loss | Isolation | Return Loss | Directivity | Polarization Dependent Loss | Polarization Mode Dispersion | Temperature | Dimensions (HxWxD) |
| Simplex | |||||||||||
| 4 Channels 1270-1330nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
| 8 Channels 1470-1610nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
| 9 Channels 1270-1590nm | 20nm | ±6.5nm | ≤ 0.3 dB | ≤ 5.2 dB (with connectors and adapters) | ≤ 24.5 dB (with connectors and adapters) | ≥ 30 dB | ≥ 35 dB | ≥ 45 dB | ≥ 50 dB | ≤ 0.3 dB | ≤ 0.2 ps |
