With high-density connectors, multiple cable configurations and integrated specialty components, CloudOptics support the integration of high-performance networks while reducing the number of cables required and, thus, reducing overall system cost and maintenance.
How To BuyContact us
sales@cloudoptics.net
| Item | Return Loss | Typical Insertion Loss | Max Insertion Loss | Minimum Bend Radius | Cladding Diameter | Operating Temperature | Storage temperature |
| SMF 9/125μm Ultra Low Loss Cables1M | ≥50dB | ≤0.12dB | ≤0.25dB | 10mm | 125 ± 1 ?m | -40~ 75°C | -45~85°C |
| SMF 9/125μm Ultra Low Loss Cables2M | ≥50dB | ≤0.12dB | ≤0.25dB | 10mm | 125 ± 1 ?m | -40~ 75°C | -45~85°C |
| SMF 9/125μm Ultra Low Loss Cables3M | ≥50dB | ≤0.12dB | ≤0.25dB | 10mm | 125 ± 1 ?m | -40~ 75°C | -45~85°C |
| SMF 9/125μm Ultra Low Loss Cables5M | ≥50dB | ≤0.12dB | ≤0.25dB | 10mm | 125 ± 1 ?m | -40~ 75°C | -45~85°C |
| Item | Return Loss | Insertion Loss | Wavelength | Fiber Jacket | Minimum Bend Radius | Cladding Diameter | Operating Temperature |
| OM4 50/125 Ultra Low Loss Cables1M | ≥20dB | ≤0.15dB | 850/1300nm | 2.0mm, PVC | 7.5mm | 125 ± 1 ?m | -40~ 75°C |
| OM4 50/125 Ultra Low Loss Cables2M | ≥20dB | ≤0.15dB | 850/1300nm | 2.0mm, PVC | 7.5mm | 125 ± 1 ?m | -40~ 75°C |
| OM4 50/125 Ultra Low Loss Cables3M | ≥20dB | ≤0.15dB | 850/1300nm | 2.0mm, PVC | 7.5mm | 125 ± 1 ?m | -40~ 75°C |
| OM4 50/125 Ultra Low Loss Cables5M | ≥20dB | ≤0.15dB | 850/1300nm | 2.0mm, PVC | 7.5mm | 125 ± 1 ?m | -40~ 75°C |
| Item | Insertion Loss | Return Loss | Attenuation at 1310 nm | Attenuation at 1550 nm | Minimum Bend Radius | Operating Temperature | Storage Temperature |

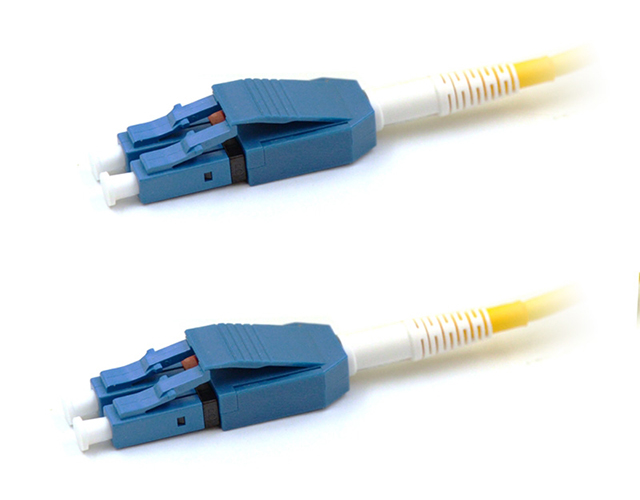

| Single Mode Uniboot LC Cables1M100N | ≤0.2dB | ≥50dB | 0.36 dB/km | 0.22 dB/km | 10mm | -40 to 85°C | -45 to 85°C |
| Single Mode Uniboot LC Cables2M100N | ≤0.2dB | ≥50dB | 0.36 dB/km | 0.22 dB/km | 10mm | -40 to 85°C | -45 to 85°C |
| Single Mode Uniboot LC Cables3M100N | ≤0.2dB | ≥50dB | 0.36 dB/km | 0.22 dB/km | 10mm | -40 to 85°C | -45 to 85°C |
| Single Mode Uniboot LC Cables5M100N | ≤0.2dB | ≥50dB | 0.36 dB/km | 0.22 dB/km | 10mm | -40 to 85°C | -45 to 85°C |
| Item | Insertion Loss | Return Loss | Pull-out Force | Durability | Operating Temperature | Storage Temperature | Minimum Bend Radius |

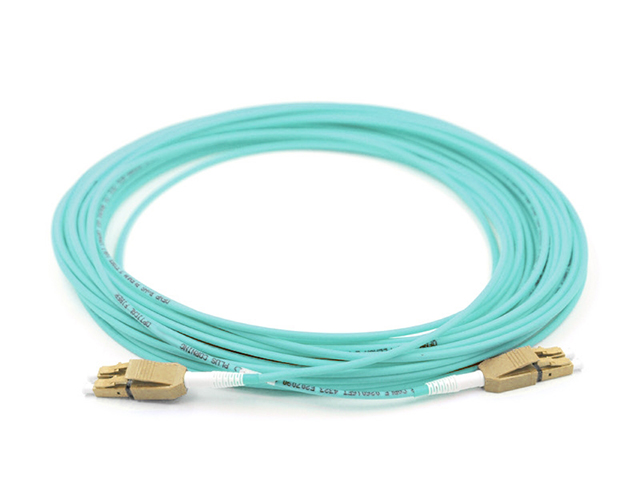

| OM3 Uniboot LC Cables1M | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40 to + 85°C | -45 to + 85°C | 7.5mm |
| OM3 Uniboot LC Cables2M | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40 to + 85°C | -45 to + 85°C | 7.5mm |
| OM3 Uniboot LC Cables3M | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40 to + 85°C | -45 to + 85°C | 7.5mm |
| OM3 Uniboot LC Cables5M | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40 to + 85°C | -45 to + 85°C | 7.5mm |
| Item | Minimum Bend Radius | Insertion Loss | Return Loss | Pull-out Force | Durability | Operating Temperature | Storage Temperature |
| OM4 Bend Insensitive LC Cables1M | 7.5mm | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40~85°C | -45~85°C |
| OM4Bend Insensitive Uniboot LC Cables2M | 7.5mm | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40~85°C | -45~85°C |
| OM4 Bend InsensitiveUniboot LC Cables3M | 7.5mm | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40~85°C | -45~85°C |
| OM4 Bend InsensitiveUniboot LC Cables5M | 7.5mm | ≤0.2dB | ≥20dB | 100N | 500 Cycles | -40~85°C | -45~85°C |
| Item | Insertion Loss | Wavelength | Cladding Diameter | Fiber Class | Minimum Bend Radius | Operating temperature | Compliants |

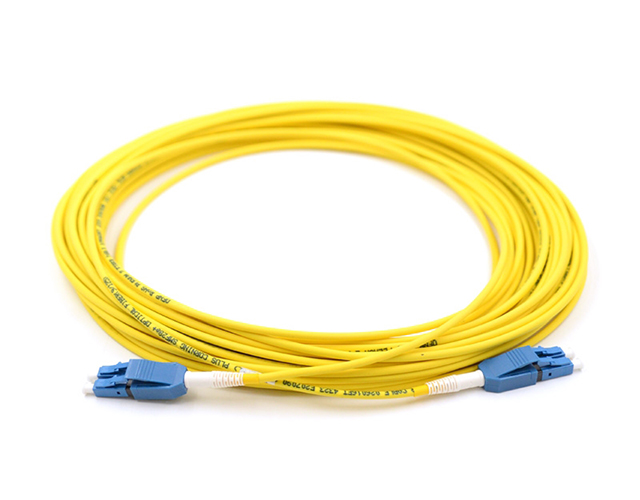

| Single Mode Bend Insensitive Cables1M | ≤ 0.3dB | 1310/1550nm | 125 ± 1 ?m | G.657.A1 (Compatible with G.652) | 10mm | -40 ~ 75°C | RoSH, ISO9001 |
| Single Mode Bend Insensitive Cables2M | ≤ 0.3dB | 1310/1550nm | 125 ± 1 ?m | G.657.A1 (Compatible with G.652) | 10mm | -40 ~ 75°C | RoSH, ISO9001 |
| Single Mode Bend Insensitive Cables3M | ≤ 0.3dB | 1310/1550nm | 125 ± 1 ?m | G.657.A1 (Compatible with G.652) | 10mm | -40 ~ 75°C | RoSH, ISO9001 |
| Single Mode Bend Insensitive Cables5M | ≤ 0.3dB | 1310/1550nm | 125 ± 1 ?m | G.657.A1 (Compatible with G.652) | 10mm | -40 ~ 75°C | RoSH, ISO9001 |
| Item | Insertion Loss | Wavelength | Cladding Diameter | Minimum Bend Radius | Compliants | Operating temperature | Storage temperature |
| OM3 Bend Insensitive Cables1M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM3 Bend Insensitive Cables2M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM3 Bend Insensitive Cables3M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM3 Bend Insensitive Cables5M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| Item | Insertion Loss | Wavelength | Cladding Diameter | Minimum Bend Radius | Compliants | Operating temperature | Storage temperature |
| OM4 Bend Insensitive Cables1M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM4 Bend Insensitive Cables2M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM4 Bend Insensitive Cables3M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
| OM4 Bend Insensitive Cables5M | ≤ 0.3dB | 850/1300nm | 125 ± 1 ?m | 7.5mm | RoSH, ISO9001 | -40 ~ 75°C | -45~85°C |
