PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are availble with 900m loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
How To BuyContact us
sales@cloudoptics.net
| Item | Configuration Type | Fiber Type | Connector Type | Fiber Diameter | Fiber Length | Insertion Loss | Return Loss | Loss Uniformity | Directivity | Polarization Dependent Loss | Temperature Dependent Loss | Wavelength Dependent Loss | Operating Bandwidth | Operating Temperature | Storage Temperature |

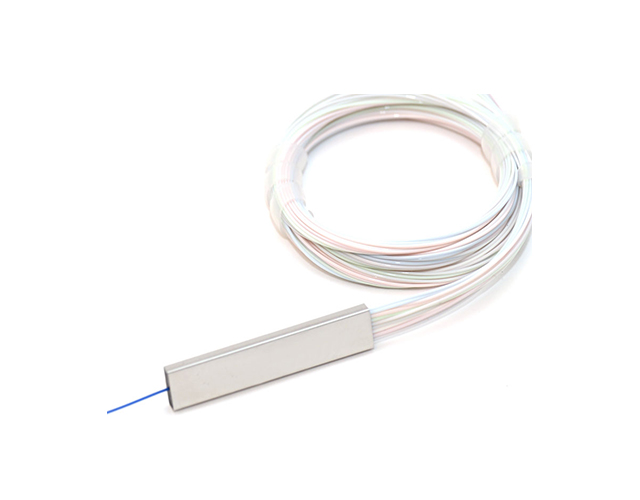

| COPLC-Steel Tube | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC- Bare Fiber | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC-Blockless | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |

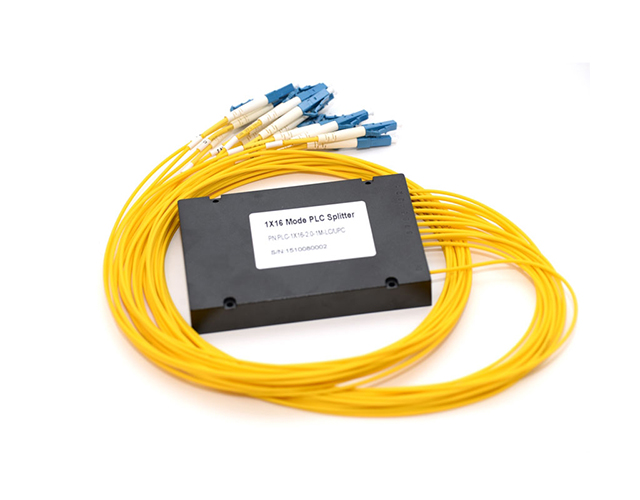

| COPLC-ABS | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC-LGX Box | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |

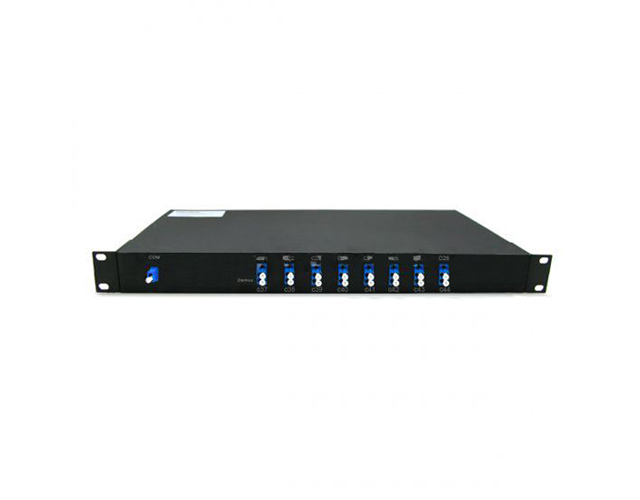

| COPLC-1U Rack | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC-Mini Plug | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC- Mount | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
| COPLC-Customized | 1x2,1x4,1x8,1x16,Custom | Singlemode G.657A1 | None | 250μm | 1.5m | ≤4.0dB | ≥50dB | ≤0.6dB | ≥55dB | ≤0.2dB | ≤0.5dB | ≤0.3dB | 1260~1650nm | -40~85°C | -40~85°C |
