DESCRIPTION

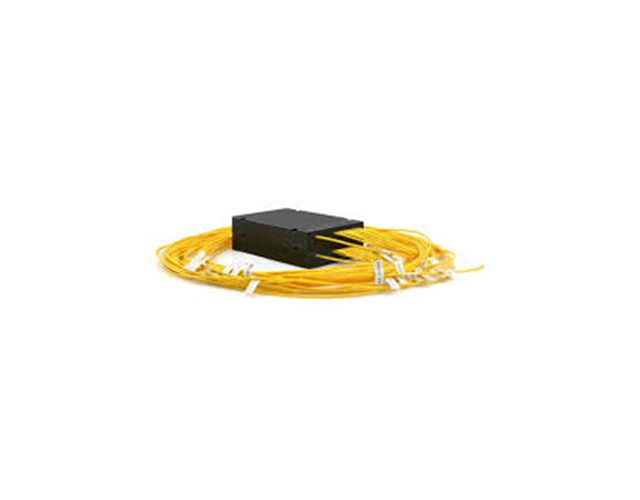

DWDM MUX&DEMUX

Wavelength	Channel Spacing	1310nm Port Pass Band Width	Channel Passband	Center Wavelength Accuracy	Insertion  Loss	Insertion Loss @ 1% Mon	Insertion Loss @ 1310 port	Technology	Adjacent channel Isolation	Non-adjacent channel Isolation	Return Loss
Duplex

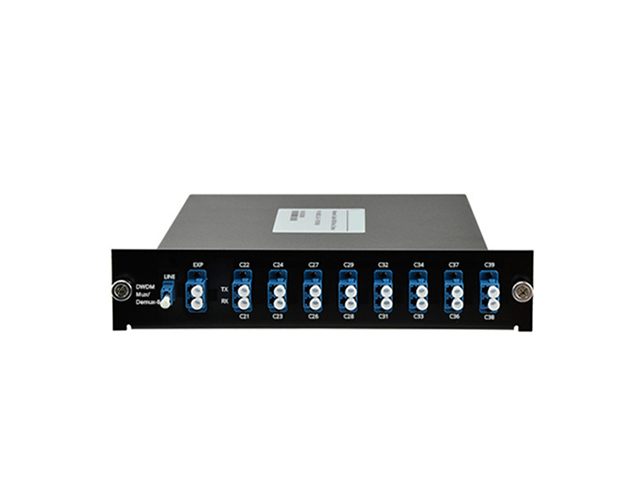

8 channels C53-C60	100GHz (0.8nm)	±0.11 nm	≤ 0.5 dB	≤ 4.6 dB (with connectors and adapters)	≤ 4.3 dB (with connectors and adapters)	≥ 30 dB	≥ 35 dB	≥ 45 dB	≥ 50 dB	≤ 0.2 dB	≤ 0.1 ps
16 channels C21-C36	100GHz (0.8nm)	±0.11 nm	≤ 0.5 dB	≤ 4.6 dB (with connectors and adapters)	≤ 4.3 dB (with connectors and adapters)	≥ 30 dB	≥ 35 dB	≥ 45 dB	≥ 50 dB	≤ 0.2 dB	≤ 0.1 ps

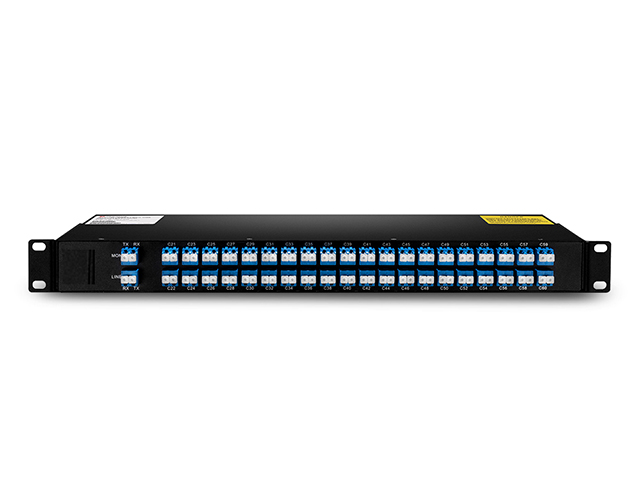

40 channels C21-C60	100GHz (0.8 nm)	1260nm~1360nm	±0.11 nm	±0.05 nm	≤ 5.0 dB, 3.5 dB typical (with connectors and adapters)	≤ 26 dB (with connectors and adapters)	≤ 1.5 dB (with connectors and adapters)	AAWG (Gaussian)	≥ 25 dB	≥ 29 dB	≥ 40 dB

Wavelength	Channel Spacing	Channel Passband	Passband Ripple	Insertion Loss	Insertion Loss @ Exp	Adjacent Channel Isolation	Non-adjacent Channel Isolation	Return Loss	Directivity	Polarization Dependent Loss	Polarization Mode Dispersion
Simplex
8 channels C53-C60	100GHz (0.8nm)	±0.11 nm	≤ 0.5 dB	≤ 4.6 dB (with connectors and adapters)	≤ 4.3 dB (with connectors and adapters)	≥ 30 dB	≥ 35 dB	≥ 45 dB	≥ 50 dB	≤ 0.2 dB	≤ 0.1 ps
16 channels C21-C36	100GHz (0.8nm)	±0.11 nm	≤ 0.5 dB	≤ 4.6 dB (with connectors and adapters)	≤ 4.3 dB (with connectors and adapters)	≥ 30 dB	≥ 35 dB	≥ 45 dB	≥ 50 dB	≤ 0.2 dB	≤ 0.1 ps
40 channels C21-C60	100GHz (0.8 nm)	1260nm~1360nm	±0.11 nm	±0.05 nm	≤ 5.0 dB, 3.5 dB typical (with connectors and adapters)	≤ 26 dB (with connectors and adapters)	≤ 1.5 dB (with connectors and adapters)	AAWG (Gaussian)	≥ 25 dB	≥ 29 dB	≥ 40 dB

Download the data sheet

• datasheet
