DESCRIPTION

100G/40G QSFP28

P/N	Product Des.	Data Rate	Reach	TX	RX	TX_Min (dBm)	TX_Max (dBm)	Rx Sensi.(dBm)	Power Consumption	Temperature
CO100GQ28-SR4	QSFP28 SR4	100G	100m	850nm VCSEL	PIN	-8.4	2.4	-10.3	<2.5W	0~70
CO100GQ28-LR4	QSFP28 LR4 (Ethernet)	100G	10km	1294 -1310nm LWDM DFB	PIN	-4.3	4.5	-10.6	<4.0W	0~70
CO100GQ28-LR4	QSFP28 LR4 Dual Rates	100G/112G	10km	1294 - 1310nm LWDM EML	PIN	0.24	4.0/2.9	0.784090909	<4.5W	0~70
CO100GQ28-CWDM4-02	QSFP28 CWDM4 (FEC)	100G	2km	DFB CWDM	PIN	-6.5	2.5	-11.5	<3.5W	0~70
CO100GQ28-eCWDM4-10	QSFP28 eCWDM4	100G	10km	DFB CWDM	PIN	-6.5	2.5	-13	<3.5W	0~70
CO100GQ28-ER4	QSFP28 ER4 Lite	100G	30km(Non-FEC)/40km	1294 -1310nm LWDM EML	APD	1	6.5/6.5	0.812195122	<4.5W	0~70
CO100GQ28-ER4	QSFP28 ER4 Lite Dual Rates	100G/112G	30km(Non-FEC)/40km	1294 - 1310nm LWDM EML	APD	1	6.5/6.5	0.794117647	<4.5W	0~70
CO100GQ28-PSM4	QSFP28 PSM4	100G	2km	1310nm DFB	PIN	-5.5	2	-10.2	<3.5W	0~70
CO100GQ28-PSM4-P	QSFP28 PSM4 Pigtail	100G	2km	1310nm DFB	PIN	-5.5	2	-10.2	<3.5W	0~70
CO100GQ28-AOC-xx	QSFP28 AOC	100G	3~100m	850nm VCSEL	PIN	N/A	N/A	N/A	<2.5W (each QSFP28)	0~70
CO100GQ28-4S-xx	QSFP28 to 4x SFP28 AOC	100G	3~100m	850nm VCSEL	PIN	N/A	N/A	N/A	<2.5W (QSFP28) / < 1.0W (each SFP28)	0~70
CO100GQ28-SR4-CP	QSFP28 SR4 (CPRI)	100G	100m	850nm VCSEL	PIN	-8.4	2.4	-10.3	<2.5W	-10~75
CO100GQ28-CLR4-ET	QSFP28 CLR4 ET	100G	10km (w/FEC)	DFB CWDM	PIN	-6.5	2.5	-13	<4.5W	-20~85

P/N	Product Des.	Data Rate	Reach	TX	RX	TX_Min (dBm)	TX_Max (dBm)	Rx Sensi. (dBm)	Power Consump.	Temperature
CO40GQSFP-SR4	QSFP+ SR4	40G	100m	850nm VCSEL	PIN	-7.6	1	-9.5	<1.5w	0~70
CO40GQSFP-eSR4	QSFP+ eSR4	40G	300m	850nm VCSEL	PIN	-7.3	1	-9.9	<1.5w	0~70
CO40GQSFP-IR4	QSFP+ IR4	40G	2km	DFB CWDM	PIN	-7	2.3	-11.7	<3.5w	0-70
CO40GQSFP-LR4	QSFP+ LR4	40G	10km	DFB CWDM	PIN	-7	2.3	-13.7	<3.5w	0~70
CO40GQSFP-ER4	QSFP+ ER4	40G	40km	DFB CWDM	APD	-2.7	4.5	-19	<3.5w	0~70
CO40GQSFP-PSMIR4	QSFP+ PSM IR4	40G	1.4km	1310nm FP	PIN	-5.5	1.5	-11.5	<3.5w	0~70
CO40GQSFP-PSMLR4	QSFP+ PSM LR4	40G	10km	1310nm DFB	PIN	-5.5	1.5	-12.6	<3.5w	0~70
CO40GQSFP-AOC-xx	QSFP+ AOC	40G	100m	850nm VCSEL	PIN	N/A	N/A	N/A	<1.5w (each QSFP+)	0~70

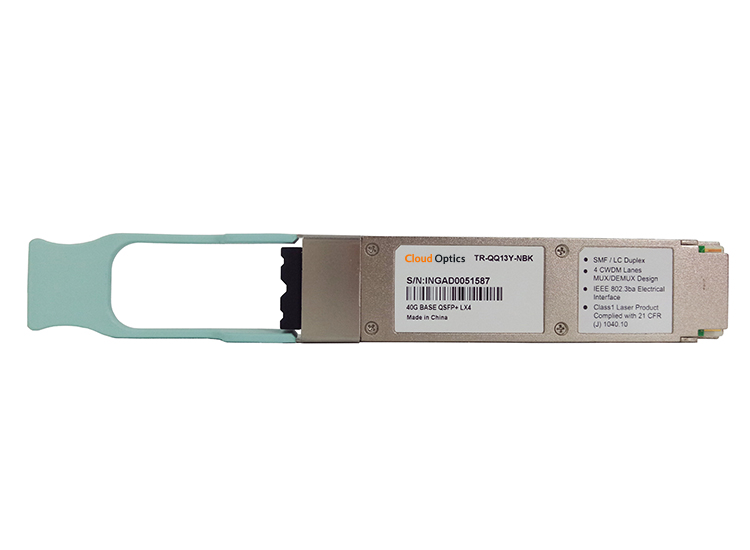

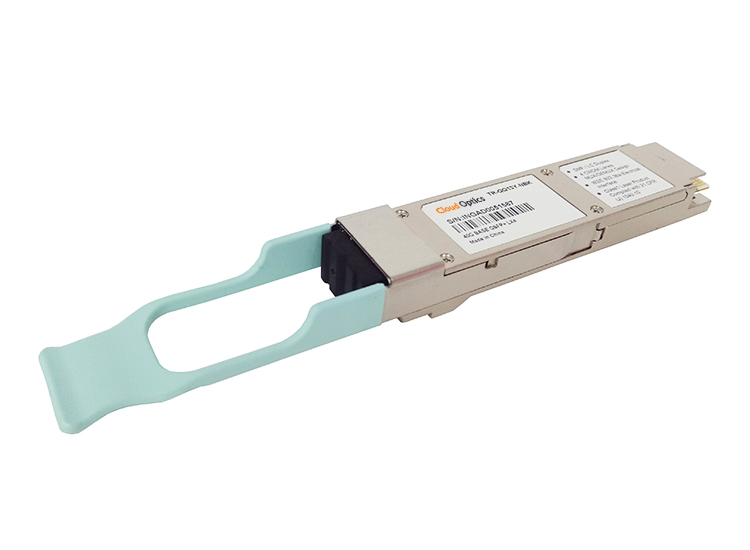

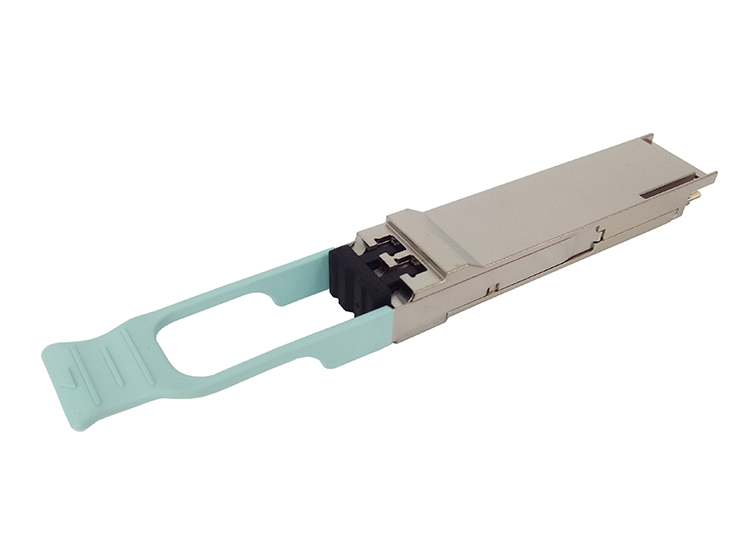

CO40GQSFP-LX4	QSFP+ LX4	40G	150m/2km	DFB CWDM	PIN	0.714285714	3.5/2.3	0.598290598	<3.5w	0~70
CO40GQSFP-AOC-xx	QSFP+ to 4x SFP+ AOC	40G	100m	850nm VCSEL	PIN	N/A	N/A	N/A	<1.5w (QSFP+) / <0.8w (each SFP+)	0~70

Download the data sheet

• datasheet

COMPATIBILITY

• QSFP28 LR4 (Ethernet)
  MSA STANDARD COMPATIBLE; ADVA 1061800720-01 COMPATIBLE; ARISTA NETWORKS QSFP-100G-LR4 COMPATIBLE; AVAYA (EX. NORTEL) AA1405001-E6 COMPATIBLE; BROCADE 100G-QSFP28-LR4L-10KM COMPATIBLE; CHELSIO QSFP28 LR4 COMPATIBLE; CHELSIO SM100G-LR COMPATIBLE; CIENA 160-9401-900 COMPATIBLE; CIENA 160-9401-901 COMPATIBLE; CIENA XCVR-Q10V31 COMPATIBLE; CISCO SYSTEMS ONS-QSFP28-LR4 COMPATIBLE; CISCO SYSTEMS QSFP-100G-LR4-S COMPATIBLE; CORIANT ZXS-Q8L-4ZZZZ-00 COMPATIBLE; CUMULUS NETWORKS QSFP28 LR4 COMPATIBLE; DELL 407-BBSL COMPATIBLE; DELL 407-BCDH COMPATIBLE; DELL QSFP28-100G-LR4 COMPATIBLE; ECI OTR100Q28_LR4 COMPATIBLE; EDGE CORE QSFP28 LR4 COMPATIBLE; EXTREME 10403 COMPATIBLE; F5 NETWORKS OPT-0039-01 COMPATIBLE; FORTINET FG-TRAN-QSFP28-LR4 COMPATIBLE; GIGAMON Q28-503 COMPATIBLE; HP H3C JL275A COMPATIBLE; HUAWEI QSFP28 LR4 COMPATIBLE; INFINERA TOM-100G-Q-LR4 COMPATIBLE; INFINERA TOM-100G-Q-LR4L COMPATIBLE; IXIA QSFP28 LR4 COMPATIBLE; JUNIPER JNP-QSFP-100G-LR4 COMPATIBLE; JUNIPER QSFP-100G-LR4-2 COMPATIBLE; JUNIPER QSFP-100GBASE-LR4 COMPATIBLE; LENOVO 7G17A03540 COMPATIBLE; MELLANOX MMA1L10-CR COMPATIBLE; MELLANOX MMA1L10-CR+ COMPATIBLE; NETAPP X65405 COMPATIBLE; NOKIA (EX. ALCATEL-LUCENT) 3HE10550AA COMPATIBLE; PALO ALTO NETWORKS PAN-QSFP28-100GBASE-LR4 COMPATIBLE
• 100G QSFP28 SR4 MTP / MPO WITH DUAL CDR
  MSA STANDARD COMPATIBLE; ARISTA NETWORKS QSFP-100G-SR4 COMPATIBLE; BROCADE 100G-QSFP28-SR4 COMPATIBLE; CHELSIO SM100G-SR COMPATIBLE; CIENA 160-9400-900 COMPATIBLE; CISCO SYSTEMS QSFP-100G-SR4-S COMPATIBLE; CUMULUS NETWORKS QSFP28 SR4 COMPATIBLE; DELL 407-BBSM COMPATIBLE; DELL QSFP28-100G-SR4 COMPATIBLE; ECI OTR100Q28_SR4DR COMPATIBLE; EDGE CORE QSFP28 SR4 COMPATIBLE; EXTREME 10401 COMPATIBLE; F5 NETWORKS OPT-0031-01 COMPATIBLE; FORTINET FG-TRAN-QSFP28-SR4 COMPATIBLE; GIGAMON Q28-502 COMPATIBLE; HP H3C JL274A COMPATIBLE; HUAWEI QSFP-100G-SR4 COMPATIBLE; INFINERA TOM-100G-Q-SR4 COMPATIBLE; JUNIPER JNP-QSFP-100G-SR4 COMPATIBLE; JUNIPER QSFP-100GBASE-SR4 COMPATIBLE; LENOVO 7G17A03539 COMPATIBLE; MELLANOX MMA1B00-C100D COMPATIBLE; NETAPP X65405 COMPATIBLE; NOKIA (EX. ALCATEL-LUCENT) 3HE10551AA COMPATIBLE; PALO ALTO NETWORKS PAN-QSFP28-100GBASE-SR4 COMPATIBLE; RADWARE 9062236 COMPATIBLE
• QSFP28 CWDM4 (FEC)
  MSA STANDARD COMPATIBLE; ARISTA NETWORKS QSFP-100G-CWDM4 COMPATIBLE; ARRIS 1000669 COMPATIBLE; BROCADE 100G-QSFP28-CWDM4-2KM COMPATIBLE; CIENA 160-9403-900 COMPATIBLE; CISCO SYSTEMS QSFP-100G-CWDM4-S COMPATIBLE; CISCO SYSTEMS QSFP-100G-SM-SR COMPATIBLE; CUMULUS NETWORKS QSFP28 CWDM4 COMPATIBLE; DELL (EX. FORCE10) QSFP28-100G-CWDM COMPATIBLE; DELL 407-BBVO COMPATIBLE; EXTREME 10404 COMPATIBLE; HUAWEI QSFP-100G-CWDM4 COMPATIBLE; JUNIPER JNP-QSFP-100G-CWDM COMPATIBLE; JUNIPER JNP-QSFP-100G-LR4 COMPATIBLE; JUNIPER QSFP28-100G-LR4 COMPATIBLE; MELLANOX MMA1L30-CM COMPATIBLE; NOKIA (EX. ALCATEL-LUCENT) 3HE10550AA COMPATIBLE
• QSFP28 PSM4
  MSA STANDARD COMPATIBLE; ADVA 1061800752-01 COMPATIBLE; ARISTA NETWORKS QSFP-100G-PSM4 COMPATIBLE; CISCO SYSTEMS QSFP-100G-PSM4-S COMPATIBLE; CUMULUS NETWORKS QSFP28 PSM4 COMPATIBLE; EXTREME 10405 COMPATIBLE; HUAWEI QSFP-100G-PSM4 COMPATIBLE; JUNIPER JNP-QSFP-100G-PSM4 COMPATIBLE; MELLANOX MMS1C00-C500 COMPATIBLE
• QSFP28 PSM4 Pigtail
  MSA STANDARD COMPATIBLE; ADVA 1061800752-01 COMPATIBLE; ARISTA NETWORKS QSFP-100G-PSM4 COMPATIBLE; CISCO SYSTEMS QSFP-100G-PSM4-S COMPATIBLE; UMULUS NETWORKS QSFP28 PSM4 COMPATIBLE; EXTREME 10405 COMPATIBLE; HUAWEI QSFP-100G-PSM4 COMPATIBLE; JUNIPER JNP-QSFP-100G-PSM4 COMPATIBLE; MELLANOX MMS1C00-C500 COMPATIBLE
